WHAT ARE THE EYELETTING MACHINES ?

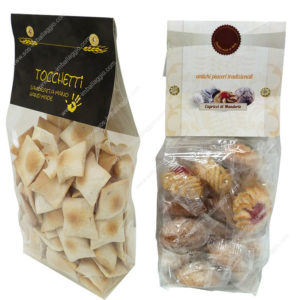

The eyelet machines are used in the food industry where there are widely used for applying eyelets on bags of pasta and sweets and sometimes in paper converting industries, banks or post offices.
There are different types of eyelets. They range from manual models, cheaper, to those pneumatic suitable for intensive and professional uses.
They are available with 1 or 2 eyeletting heads, depending on how many eyelets may apply simultaneously. In the case of simultaneous application of eyelets it is advisable to apply a jig to place the eyelets in the same position and avoid unsightly effects.
The standard eyelet used on boxes of pasta and biscuits, is 9 mm (with a written warranty). Eyeletting machines for 7 mm and 051 type (head 9.5 mm – 5.5 mm internal diameter) eyelets are available on request.
HOW TO CHOOSE THE SUITABLE EYELETTING MACHINE TO YOUR WORK?
The eyeletting machines can be divided into manual models, for benchtop with lever and with mechanical or pneumatic pedal.
Manual clamp eyeletting machines:
The manual clamp models are indicated for very limited productions because the insertion of the eyelet in the clamp takes place manually and, therefore, very lengthens the working times. Furthermore, the application of the eyelets on the bag requires a strong pressure and risks becoming very tiring realize so many packages in that way.
Lever eyeletting machine:
Benchtop model equipped with a lever to lower to perform the eyeletting. Suitable for medium production, the operation is very simple, just fill the magazine with eyelets, place the particular to be sealed on the retyping plan and operate strongly to the closing lever.
Mechanical eyeletting machines:
The mechanical eyeletting machines are constituted by a head resting on a support with legs 4 and equipped with a mechanical pedal.
1 or 2 mechanical heads: suitable for medium to high production, the operator must load the magazine with eyelets, place the particular to be sealed on the retyping plan and press the mechanical pedal.
Pneumatic eyeletting machines:
The pneumatic eyeletting machines are constituted by a head resting on a support with legs 4 and equipped with a pneumatic pedal.
1 or 2 pneumatic heads: suitable for high production, the operator must load the magazine with the eyelets, positioning the particular to be sealed on the retyping plan and press the pneumatic pedal.
Portable pneumatic: recommended when you need to move the machine frequently, is especially used in the realization of the mosquito nets. The operation is simple, just enter the particular to be sealed on the retyping plan and press the zoom lever.
EYELETS:
The standard eyelets are those 9 mm, the classics that we can see on packages of pasta and biscuits. However, there are eyelets of 7 mm, for example those which are applied on pats of butter, and 051 type with 5.5 mm internal diameter and 9.5 mm head.
They are available in gold (yellow) and zinc (gray) finishing and thanks to the “flat” head does not affect the material on which they are applied.
SPECIAL EYELETTING MACHINES
The abovementioned are the classic eyeleting machines used in food industry. Then there are the special models suitable for the application of eyelets on curtains, advertising tarpaulins and banners. These allow the drilling of the sheet and the subsequent application of external eyelets with diameter from 12.8 to 61.7 mm.
Contact us for more information.
